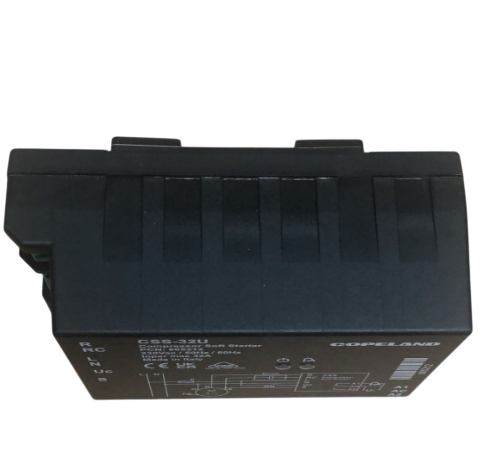

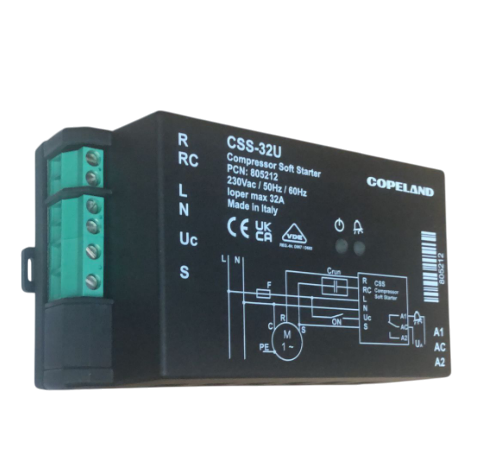

Thermia Soft Start 32A SP 086L2983 CSS-32U For Single-Phase Compressors

Soft Start 32A for Thermia Heat Pumps

• For motors with a maximum operating current of up to 25A/32A
• Starting current limited to less than 45 A
• Self-adjusting for use in 50 Hz or 60 Hz supply
• Self-adjusting to motor current - no manual adjustment or calibration necessary
• Alarm relay output
• Start capacitor for improved motor acceleration is switched off after start
• Low voltage shutdown
• Locked rotor recognition and shutdown
• Delay function to limit number of motor starts per hour
• Thyristor protected contactor for long service life
• No extra motor contactor required
• Self-diagnostics; Mounting clip for easy installation allows DIN rail mounting in two directions; Easy connection by cage type screw terminals wire ∅ 4mm
• Certified to EN60335-1, EN60335-2-40, EN60947-1, EN60947-4-2
