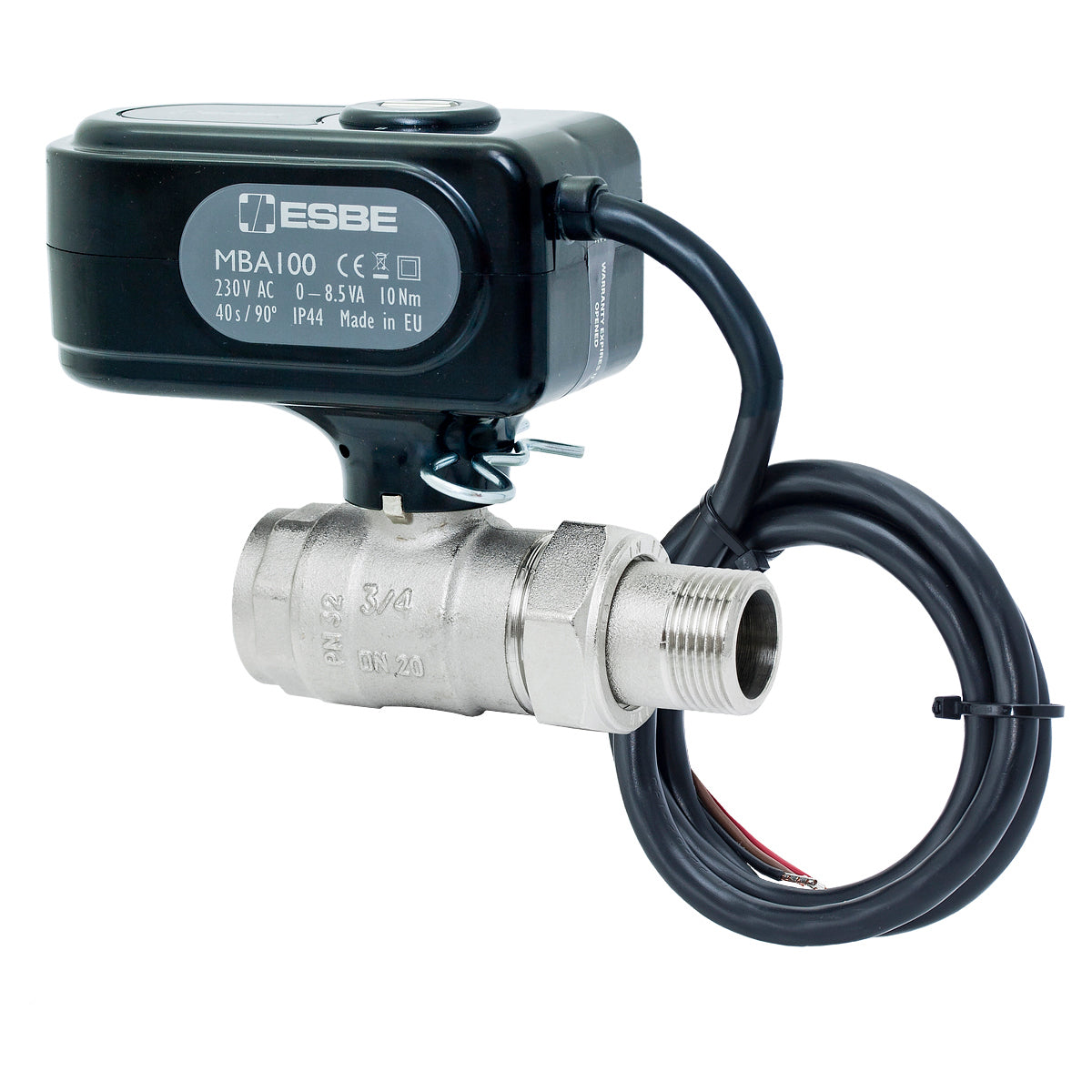

ESBE MBA124 Motorized Ball Valve Internal & External Thread

MBA120 - Motorized Ball Valve

• High flow capabilities
• Air bubble tight
• Anti-condensation resistor to prevent condensation
• Flexible and easy to install

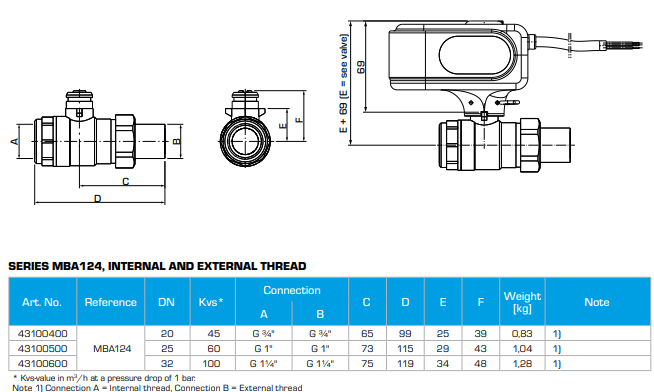

Note - Connection A = Internal thread; Connection B = External thread

Series MBA120 is a range of 2-way motorized ball valves with actuator for use in heating and cooling system. The valve is air bubble tight according to EN12266-1. The MBA120 series is available in DN15-32 and comes with different type of connections to suit most needs. The actuator is assembled on the ball valve with a metallic spigot that allows to assembly/disassembly the actuator in a secure , simple and rapid way.
