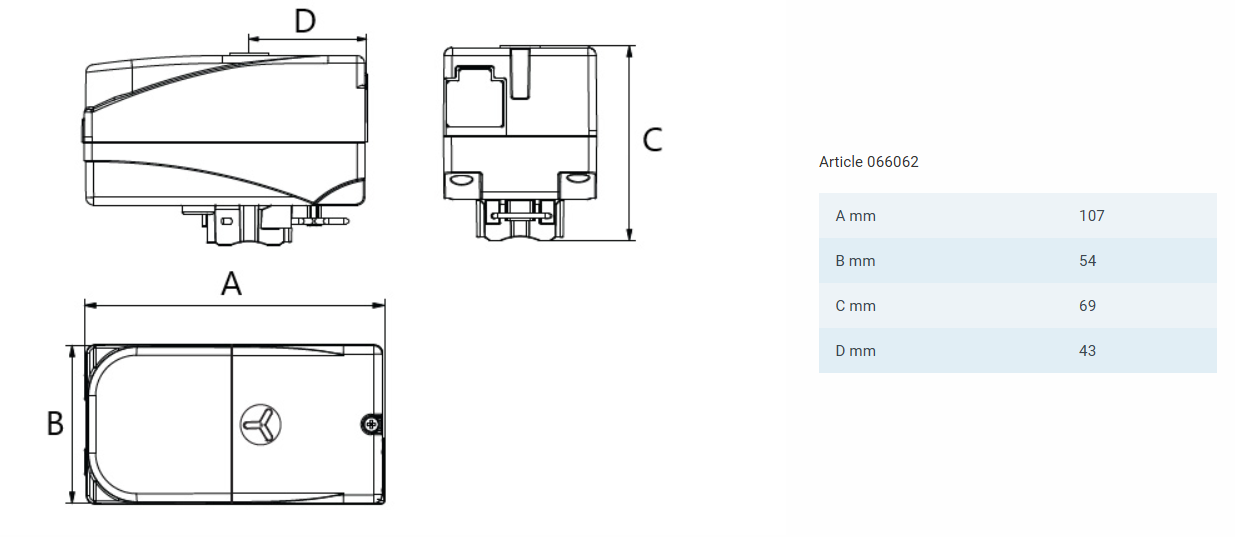

LK EMV 110-K Actuator 230 VAC with 3m Cable - 066062

066062

EMV 110-K SPST Actuator 230 VAC with 3m Cable

A compact and durable actuator for zone valves. Equipped with an indicator for port position and a fixed 1 m cable for easy electrical connection. IP44-rated protection.

LK 525 MultiZone Polar / Solar is a motorized 3-way zone valve for On/Off control intended for use in cooling systems where the temperature of the media can go below 0 °C or in solar heating systems where the temperature of the media can reach very high levels. The plastic adapter is installed between the valve unit and the actuator to protect the actuator against condensation and icing or high temperatures.

The zone valve is designed with a turning slide which allows it to withstand a larger pressure difference and ­reduces the risk of it stalling after longer periods of intermission. On the upper surface of the actuator is an indicator that shows which port is open.

EMV110-K

IP44

(Actuator and cable included only)

My mixing valve rotates in different directions: is there something wrong?

• No, this is quite normal. The mixing valve will rotate randomly between ports A and B. Rotation takes place at an angle of 60°.
