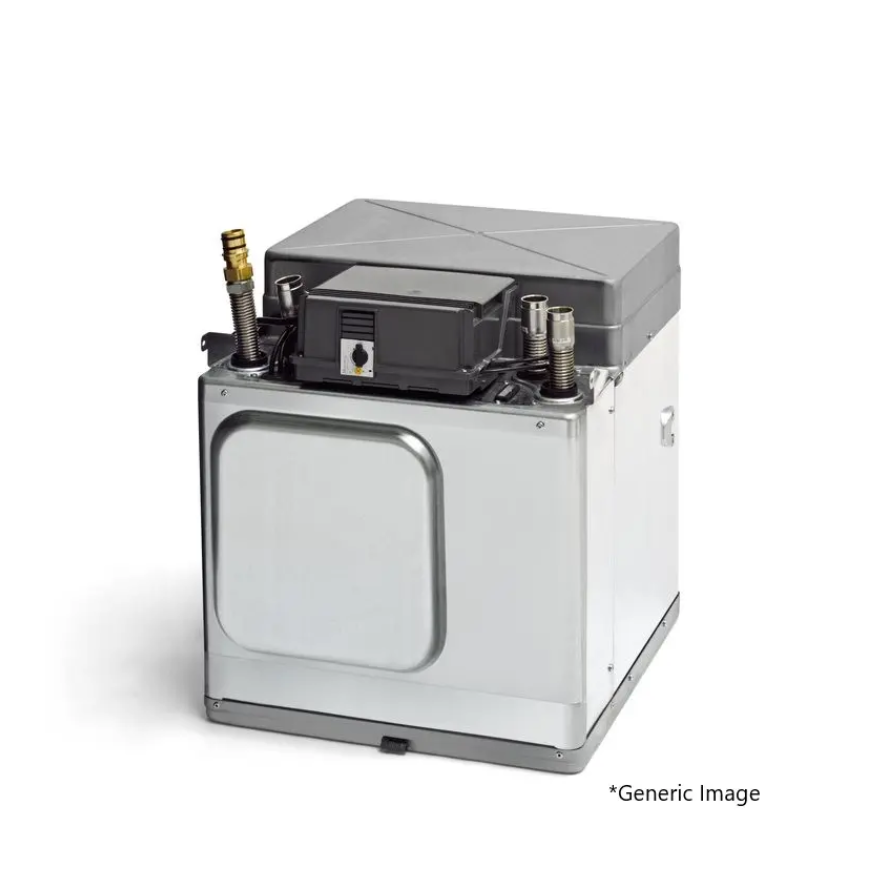

NIBE Cooling Module CMR 45-12 - 067190
£6,689.99
In Stock
Direct from Supplier Order
Get in touch for pricing or lead times!
SKU: 067190
Categories: All Products, NIBE, NIBE F1145
- Description
- Reviews
NIBE Cooling Module CMR 45-12 - 067190
- Width: 650mm
- Length: 650mm
- Height: 775mm
Included Components:
- REFRIDGERATION PIPE-CU: 1
- CSK SPECIAL SCREW-DOGP: 6
- SAFETY CLIPS: 4
- COMPRESSOR PLATE: 1
- PLATE CONSOLE EXCHANGER: 2
- CIRK PUMP ASSY: 1
- EVAPORATOR COMPLETE: 1
- CONDENSOR COMPLETE: 1
- LIQUID LINE COMPLETE: 1
- INSULATION: 1
- INSULATION: 1
- BITUMEN INSULATION: 1
- REFRIGERANT R407C: 1
- CIRCULATION PUMP: 1
- CU TUBE: 1
- RUBBER SHOCK-ABSORBER: 4
- CONE, SCHRADER VALVE 1/4": 2
- SOUNDISOLATION: 1
- VIBRATION DAMPER: 4
- INSULATING TUBE: 4
- DIFFUSIONS BARR: 6
- PCBA SENSOR CARD: 1
- CABLE TIE 150x3.5: 9
- CRANKCASE HEATER 43W: 1
- TEMPERATURE SENSOR KIT: 1
- TOP REFR. UNIT: 1
- 1/4 FLARE CAP NUT: 2
- PROTECTIVE PLUG: 4
- CABLE TIE 198x3.5: 11
- CU-TUBE REFRIDGE. TUBE: 1
- PAN SCREW-WOOD-TIP: 8
- WASHER PLASTICS: 6
- PAN SPECIAL SCREW-FT: 2
- PAN SCREW: 2
- PAN SCREW-FLG-PT: 2
- HEX SPECIAL NUT WASHER: 6
- PAN SPECIAL SCREW-FT: 2
- COMPRESSOR SCREW: 4
- LOCK WASHER: 4
- HEAT ZINK: 0.053
- DAMPER FOR DISCHARGE LINE: 1
- INSULATING TAPE: 0.5
- COMPRESSOR COPELAND ZH30K4E-PF: 1
- REFRIDGERATION UNIT: 1
- REFRIDGERATION MODULE 45-12: 1
- ELECTR. ASSY COMPRESSOR: 1
- MOTOR MODULE BVP 12kW: 1
- CLIP 28: 4
- Clip: 1
- FLEX PIPE: 1
- FLEXIBLE HOSE WITH SENSOR: 1
- SENSOR CLIP "EMMY-SENSORS": 1
- STRIP WITH HOOD: 5.3
- SEALING RING ANTI-FRICTION: 8
- HOT MELT ADHESIVE: 0.038
- CARDHOLDER: 1
- TUBEHOLDER: 2
- CARDSEAL: 1
- Plastic clips: 2
- FRONT COVER: 1
- CORNER SUPPORT: 4
- BOTTOM REFRIDG. UNIT: 1
- FRAME REFR. MODULE: 1
- BIPACKSATS CMR: 1
- HEATEX.INSUL FRONT: 1
- HEATEX.INSUL BACK: 2
- HEATEX.INSUL WRAP: 2
- HEATEX.INSUL BACK: 2
- HEATEX.INSUL FRONT: 1
- CABLE TIE 230x12.7: 2
Compatible with models below:
- NIBE F1245-12 R 1X230 - 065149
- NIBE F1245-12 R 1X230 UK - 065153
- NIBE F1145-12 1X230 - 065158
- NIBE F1145-12, 1X230V - 665245
- NIBE F1245-12 R, 1X230V - 665365
- NIBE F1245-12 R1X230V UK - 665405
Unsure if suitable for your needs, get in touch and we will be happy to help!
