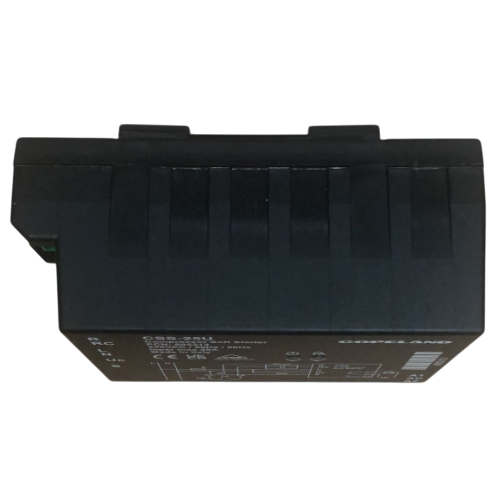

Thermia Soft Start 25A SP 086L2982 CSS-25U For Single-Phase Compressors

Soft Start 25A for Thermia Heat Pumps

• For motors with a maximum operating current of up to 25A
• Starting current limited to less than 45 A
• Self-adjusting for use in 50 Hz or 60 Hz supply
• Self-adjusting to motor current - no manual adjustment or calibration necessary
• Alarm relay output
• Start capacitor for improved motor acceleration is switched off after start
• Low voltage shutdown
• Locked rotor recognition and shutdown
• Delay function to limit number of motor starts per hour
• Thyristor protected contactor for long service life
• No extra motor contactor required
• Self-diagnostics; Mounting clip for easy installation allows DIN rail mounting in two directions; Easy connection by cage type screw terminals wire ∅ 4mm
• Certified to EN60335-1, EN60335-2-40, EN60947-1, EN60947-4-2

Compatible With

• Atec
  • Atec 6-18 2011-2022
    • ATEC 6 230-1Article Number: 086U9983
    • ATEC 9 230-1Article Number: 086U9984
    • ATEC 11 230-1Article Number: 086U9986
    • ATEC 13 230-1Article Number: 086U9987
    • ATEC 16 230-1Article Number: 086U9989
• Atria
  • Atria 2005-2008
    • THERMIA ATRIA 6 230-1Article Number: 086U1158
    • THERMIA ATRIA 8 230-1Article Number: 086U1159
    • THERMIA ATRIA 10 230-1Article Number: 086U1161
    • THERMIA ATRIA 12 230-1Article Number: 086U1163
  • Atria 2008-2013
    • ATRIA 6 230-1Article Number: 086U4618
    • ATRIA 8 230-1Article Number: 086U4619
    • ATRIA 10 230-1Article Number: 086U4620
    • ATRIA 12 230-1Article Number: 086U4621
    • ATRIA DUO 6 230-1Article Number: 086U4672
    • ATRIA DUO 8 230-1Article Number: 086U4673
    • ATRIA DUO 10 230-1Article Number: 086U4674
    • ATRIA DUO 12 230-1Article Number: 086U4675
• Atria Optimum
  • Atria Optimum 2008-2017
    • ATRIA DUO OPTIMUM 6 230-1Article Number: 086U4713
    • ATRIA DUO OPTIMUM 8 230-1Article Number: 086U4714
    • ATRIA DUO OPTIMUM 10 230-1Article Number: 086U4715
    • ATRIA DUO OPTIMUM 12 230-1Article Number: 086U4716
    • ATRIA OPTIMUM 6 230-1Article Number: 086L2179
    • ATRIA OPTIMUM 8 230-1Article Number: 086L2180
    • ATRIA OPTIMUM 10 230-1Article Number: 086L2181
    • ATRIA OPTIMUM 12 230-1Article Number: 086L2182
• Diplomat
  • Diplomat 2002-2008
    • DIPLOMAT 4 400VArticle Number: 086U0482
  • Diplomat 2008-2015
    • DIPLOMAT 4 230-1Article Number: 086U4480
    • DIPLOMAT 4 400VArticle Number: 086U4467
    • DIPLOMAT 6 230-1Article Number: 086U4481
    • DIPLOMAT 8 230-1Article Number: 086U4482
    • DIPLOMAT 10 230-1Article Number: 086U4483
    • DIPLOMAT 12 230-1Article Number: 086U4484
    • DIPLOMAT DUO 4 400VArticle Number: 086U4506
    • DIPLOMAT DUO 6 230-1Article Number: 086U4520
    • DIPLOMAT DUO 8 230-1Article Number: 086U4521
    • DIPLOMAT DUO 10 230-1Article Number: 086U4522
    • DIPLOMAT DUO 12 230-1Article Number: 086U4523
• Diplomat Optimum
  • Diplomat Optimum 2006-2008
    • DIPLOMAT OPTIMUM 6 230-1Article Number: 086U1249
    • DIPLOMAT OPTIMUM 8 230-1Article Number: 086U1251
    • DIPLOMAT OPTIMUM 10 230-1Article Number: 086U1253
    • DIPLOMAT OPTIMUM 12 230-1Article Number: 086U1254
  • Diplomat Optimum 2008-2022
    • DIPLOMAT DUO OPTIMUM 4 230-1Article Number: 086L1015
    • DIPLOMAT DUO OPTIMUM 4 400VArticle Number: 086L1014
    • DIPLOMAT DUO OPTIMUM 6 230-1Article Number: 086U4774
    • DIPLOMAT DUO OPTIMUM 8 230-1Article Number: 086U4775
    • DIPLOMAT DUO OPTIMUM 10 230-1Article Number: 086U4776
    • DIPLOMAT DUO OPTIMUM 12 230-1Article Number: 086U4777
    • DIPLOMAT OPTIMUM 4 230-1Article Number: 086L1011
    • DIPLOMAT OPTIMUM 4 400VArticle Number: 086L1010
    • DIPLOMAT OPTIMUM 6 230-1Article Number: 086U3212
    • DIPLOMAT OPTIMUM 8 230-1Article Number: 086U3213
    • DIPLOMAT OPTIMUM 10 230-1Article Number: 086U3214
    • DIPLOMAT OPTIMUM 12 230-1Article Number: 086U3215
• Diplomat Optimum G2
  • Diplomat Optimum G2 2007-2012
    • DIPLOMAT OPTIMUM G2 6 230-1Article Number: 086U7121
    • DIPLOMAT OPTIMUM G2 8 230-1Article Number: 086U7122
    • DIPLOMAT OPTIMUM G2 10 230-1Article Number: 086U7123
    • DIPLOMAT OPTIMUM G2 12 230-1Article Number: 086U7124
• Legend
  • Legend 2022 >
    • Legend 8 230-1Article Number: 204631
    • Legend 10 230-1Article Number: 204632
