Thermia / Danfoss Flexible Hose 22mmx22mm - Plain-Compression - 086L3304 / 334464
£68.24
In Stock
Direct from Supplier Order
Get in touch for pricing or lead times!
Not sure it's the right part?
Send us the model or part number, or call Kris or Baron on 01757 606 870 (Mon–Fri 8:30–5). We'll check before you order.
Need this part? Ask us about availability.
Send us the part number, or call Kris or Baron on 01757 606 870 (Mon–Fri 8:30–5). We'll check availability and come back with a price.
SKU: 086L3304 / 334464
Description
- Description
- Reviews

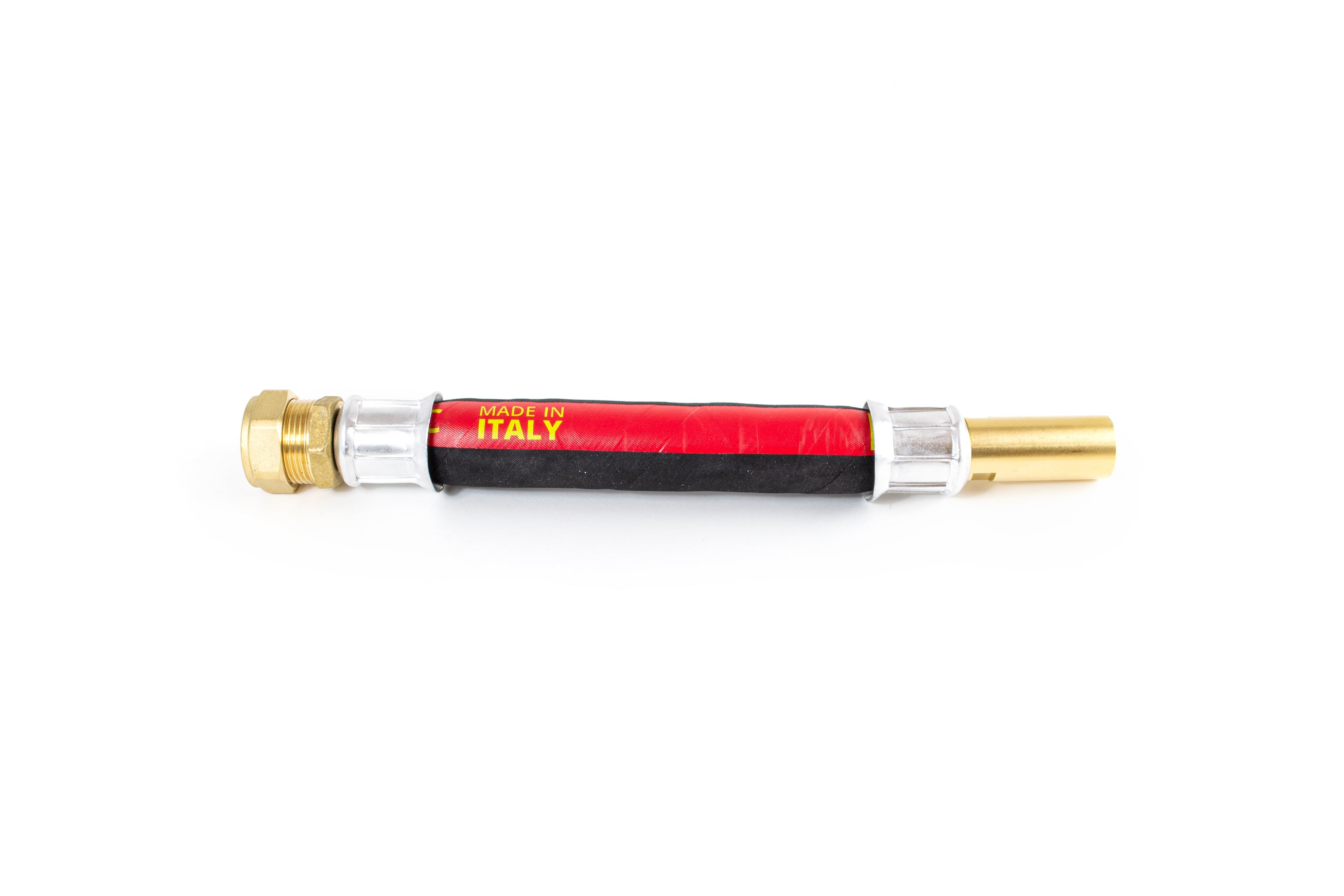

Flexible Hose with 22mm stub of brass and 22mm compression fitting. 260mm in length.
Tap water with a mix of up to 50 % of ethylene glycol, propylene glycol, ethanol.
Bending radius:
3,5 times the outer diameter of the hose, with a maximum flow reduction of 10 %.
Min temperature: ±0 °C
Max temperature: +110 °C
Max ambient temperature: +50 °C
Design pressure: 10 bar
Burst pressure: 30 bar
086L3304 / 334464
Compatible with the following;
- Thermia Diplomat Inverter M 2015-2019
- Thermia Diplomat Inverter L 2015-2019
- Thermia Diplomat Optimum G3 6Kw
- Thermia Diplomat Optimum G3 8Kw
- Thermia Diplomat Optimum G310Kw
- Thermia Diplomat Optimum G3 13Kw
If you are unsure if this product is suitable for your Heat Pump please contact us providing your Heat Pumps Serial Number.
Up to 10 day lead time if Pre-ordered/out of stock
