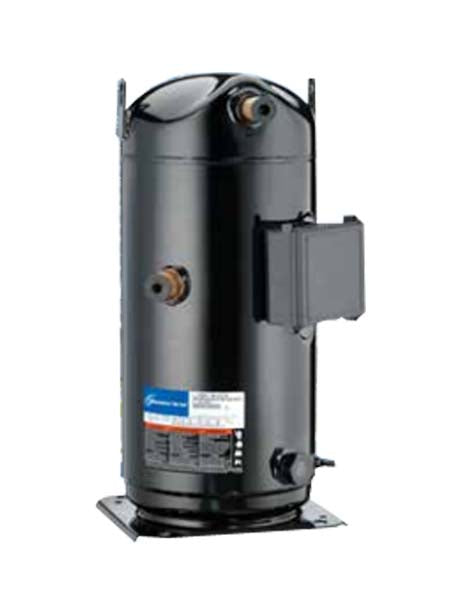

Copeland Scroll - ZP295KCE TWD

Copeland Scroll - ZP295KCE TWD

The Copeland™ ZP R410A scroll compressors for air conditioning systems are designed for high efficiency and reliability in air-cooled refrigeration systems, with evaporating temperatures around +5°C.

Features such as soldered connections, tandemisation and the ability to work with multiple refrigerants meet the requirements of a more demanding market.

Refrigeration Type : R410A
Cooling Efficiency (EER) : 11.1
Capacity Range (BTU) : 244,000
Voltage : 380-420V ; 50Hz
Phase : 3
Application : Airconditioning

Technical Data:

• Cooling capacity: 63.50 kW
• COP: 3.18
• Displacement: 46.7 m³/h
• Handling: IP 54 (IEC 34)
• Frequency [Hz]: 50, 60
• Height: 715 mm
• Length: 390 mm
• Width: 447 mm
• Low/High Side PS [bar] [g]: 29.5/45
• Maximum operating current: 48.5 A
• Power at conditions: 5°C evaporating temp.; 50°C condensing temp.; 10 K suction superheat; 0 K subcooling for R-410A at 50 Hz
• Power consumption: 20.00 kW
• Product family: Copeland Scroll A/C
• Sound power [dBA]: 90
• Voltage @ Hz: 380-420 V at 50 Hz, 460 V at 60 Hz
