Grant - EBS01 - Oil Pump for Ecoflam MAX1 Burner

EBS01

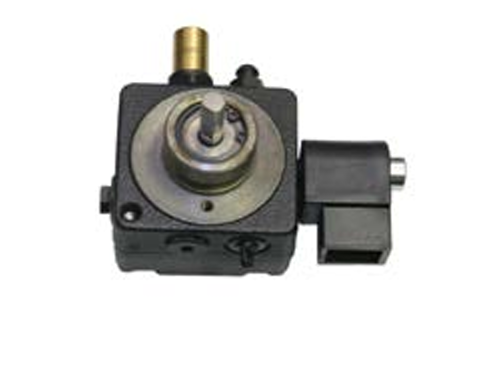

Oil Pump for Ecoflam MAX1 Burner

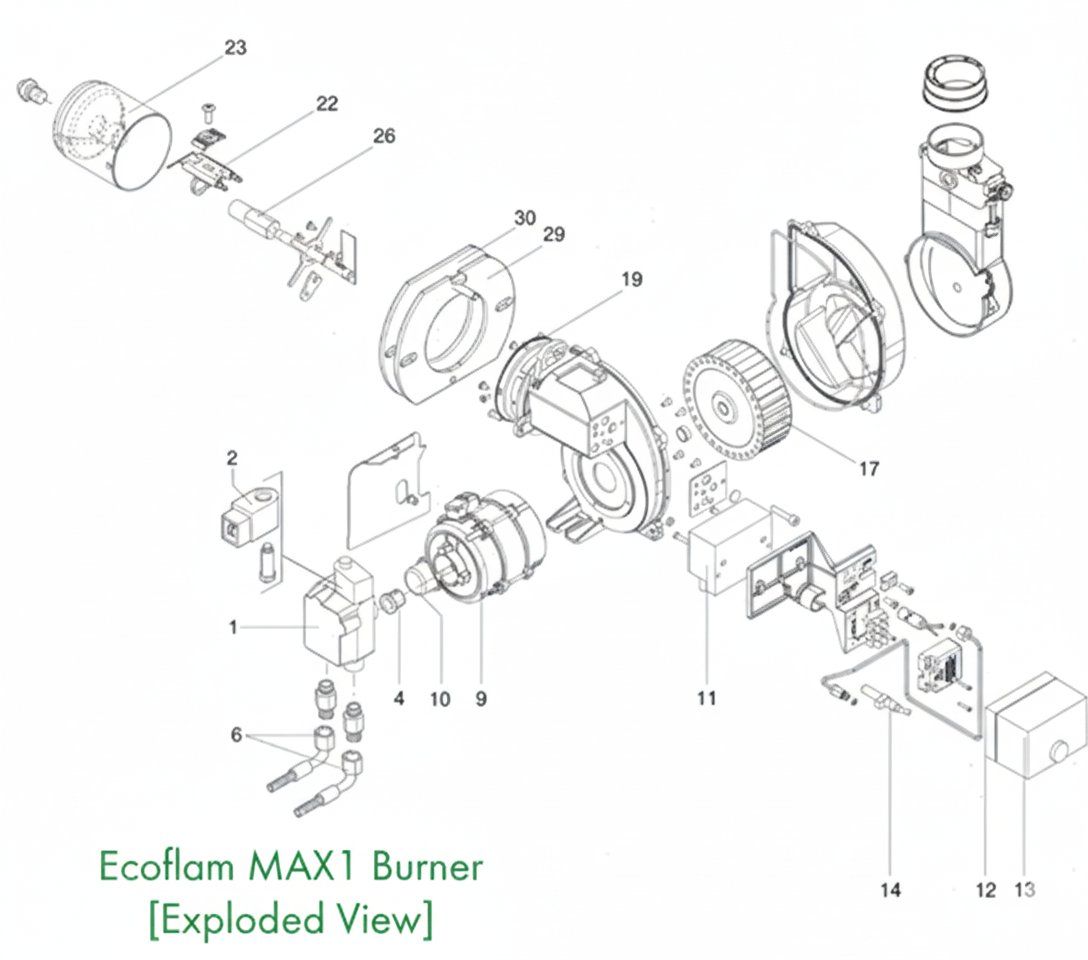

 Diagram Index:1

Compatible With Danfoss BFP11R3

• The Diamond series pumps provide exceptional durability with its use of diamond-like carbon technology.
• The Danfoss 071N7155 BFP 11 R3 Diamond series oil pump which has been designed to be used for domestic applications which use kerosene or light oil as the fuels source.
• Actuator type: NC Fuel type: Kerosene/Light oil
• Capacity: 24 L/h
• Capacity range: 0-24 L/h
• Definition point: 2800 min-1, 10bar 4.3 cSt
• Coil consumption: 9W
• Coil Voltage: 220-230V AC
• Pressure (Min/Max): 7 bar/15 bar
• Closing function: Cut-off
• Filter type: Ring filter area: 13cm2
• Filter grade: 200m
• Grade of enclosure: IP40
• Nozzle/pressure outlet: R
• Number of pipes: 1
• Number of stages: 1
• Oil pump speed: 3450 op/min
• Fuel Type:- Kerosene/Light Oil
