OSO OPTIMA – OGC

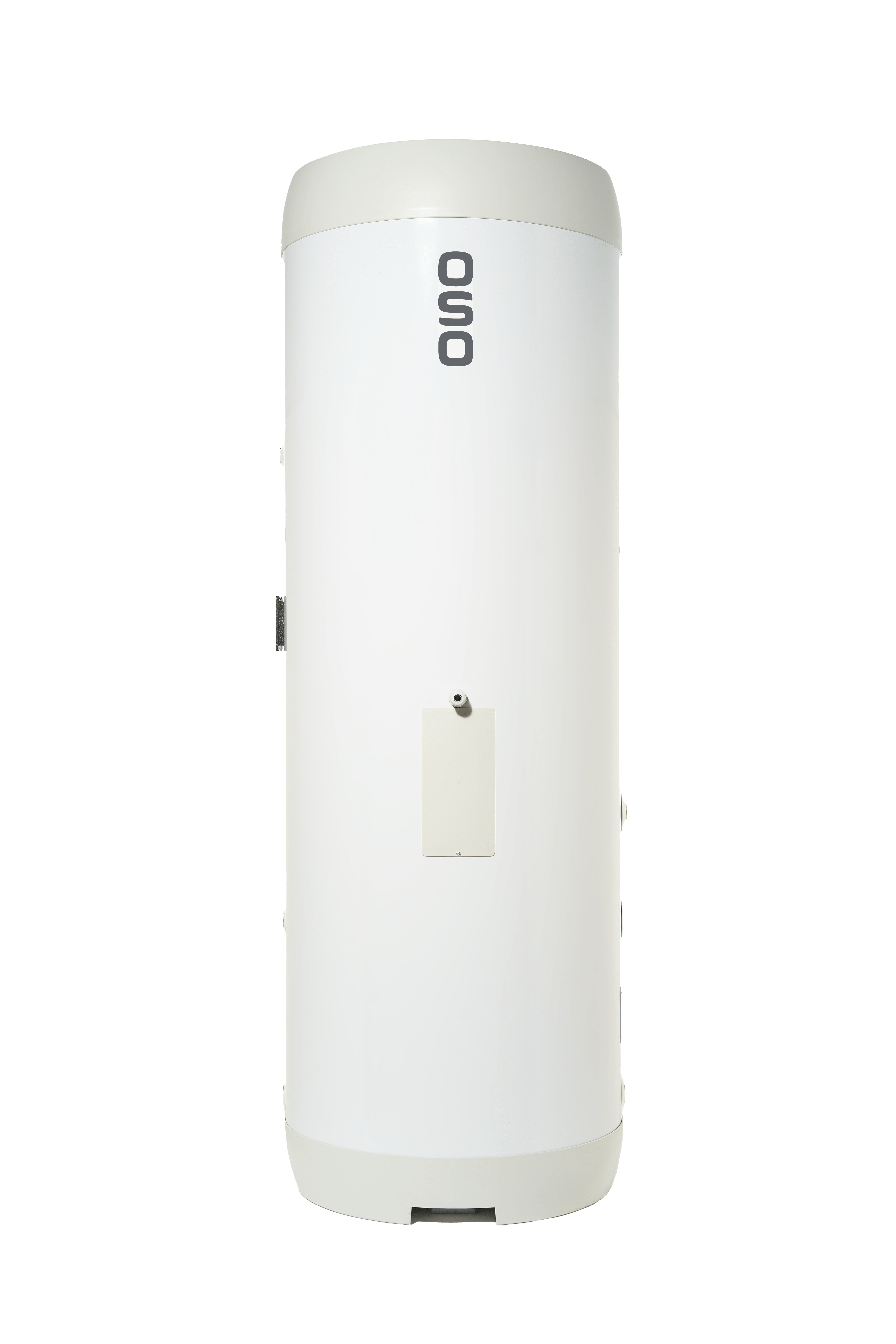

OSO OPTIMA – OGC - 11003523

Advantages:

• All connections hidden
• High-grade insulation
• Superior corrosion resistance
• High durability in hard water
• Stainless steel construction with 10 year warranty
• Pre-heating  the hot water cylinder through the buffer, keeping COP high

Key Components:

• Thermostat – Adjustable 40-70°C immersion – 3kW
• P&T safety valve – 10 bar – 90-95°C
• Integrated G3 kit including: Expansion Vessel, Strainer, PRV, Tundish, Expansion Relief

Space Saving, a premium quality heat pump cylinder with a dedicated buffer tank in a single footprint halving the space required and a massive reduction in pipework.

Cost Saving, reduced installation cost compared to a separate cylinder and buffer tank installation. Reduced labour, cheaper than buying two tanks and less materials required.

Time Saving, reduced installation time due to a much simpler installation. Plus, all pipework brought to a single area with no additional pipework to link two tanks.

Increased Efficiency, pre-heating the hot water cylinder through the buffer adds further load to the heat pump to keep COP high. Reduced pipework means less heat loss – pipework between buffer and cylinder if properly lagged (which it may not be) would not retain heat as well as the Optima – OGC which encapsulates both tanks within its foam lagging case

Increased Comfort, a pre-heated hot water cylinder means the heat pump doesn’t have to switch into dedicated hot water mode for such a long time when hot water  is called  for via demand or timer. Because the dedicated hot water mode time is shorter, the property is deprived of space heating for a shorter time and the hot water achieves its desired temperature quicker

Additional Renewable Input, solar PV can be added to the on-board immersion heater. The Immersion heater position means you can heat 100% of the hot water tank if necessary. (from solar or mains)
