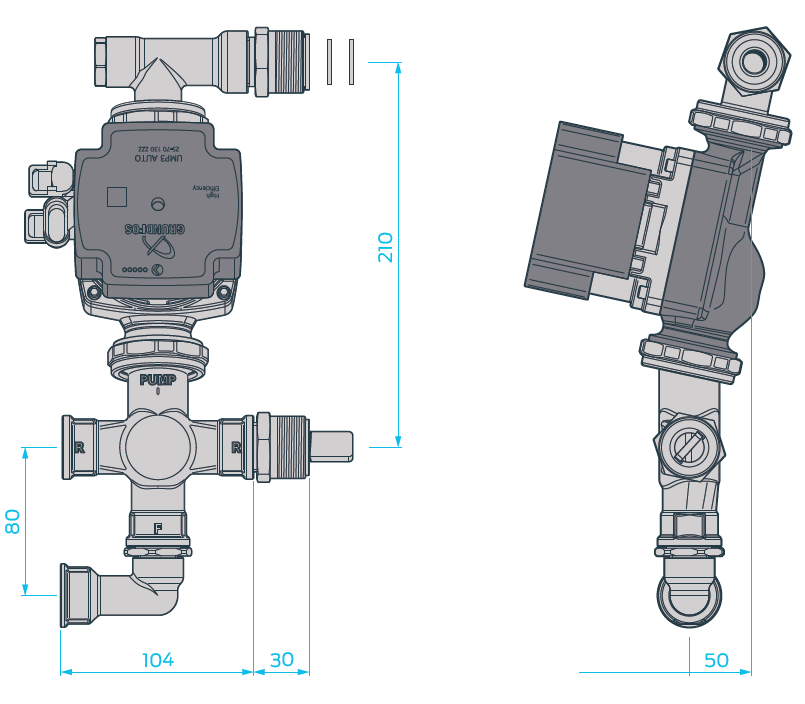

UFHC960001 RWC UFH HEAT PUMP PACK

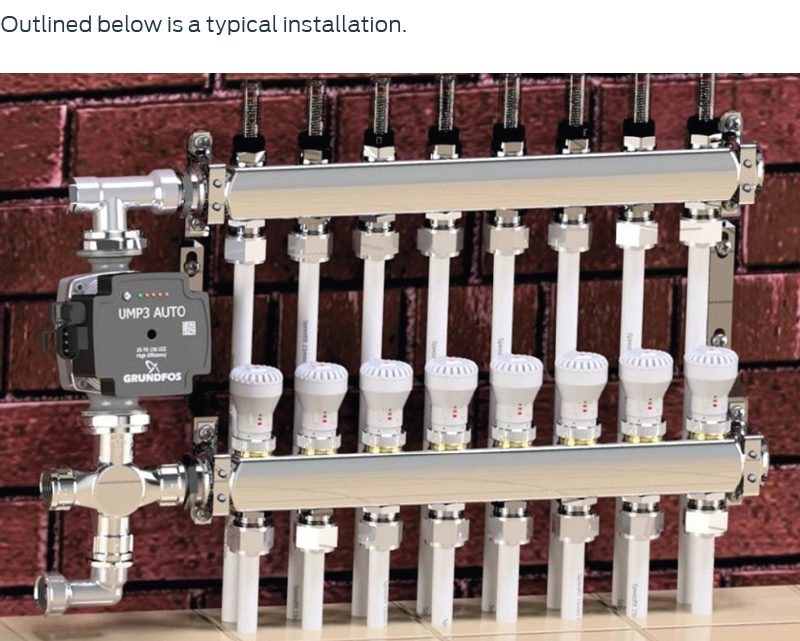

A compact prefabricated non thermostatic kit designed to provide a
quick and easy way of connecting the circulating pump, flow and return
connections onto a UFH manifold. Designed to be used in heat pump or
other low temperature systems that do not require a thermostatic control
valve. The kit includes a four way connector, a connecting elbow, an ERP
rated 7.5 metre circulating pump, and a flow manifold connection tee piece
which includes a ½” FBSP tapping that can be used for reading temperatures
and pressures or as a connection point for the UFH Overheat Thermostat.

• 7.5 metre pump, ERP rated with easy to use plug in cable connection
• Designed for left or right hand connection
• Designed for side or bottom connection of the flow and return pipes
• The angled flange on the pump connection keeps the flow and return
pipes on the same level

Reduces installation complexity
• Saves installation time
• Gives the option of adding a thermostatic “Thermoguard” valve if system
temperatures are changed and a thermostatic valve is needed
• Allows maximum flexibility in the installation design

¾” inlets – 1” outlets

Maximum temperature 90oC
Maximum pressure 6 bar
Maximum flow rate 32 lpm
