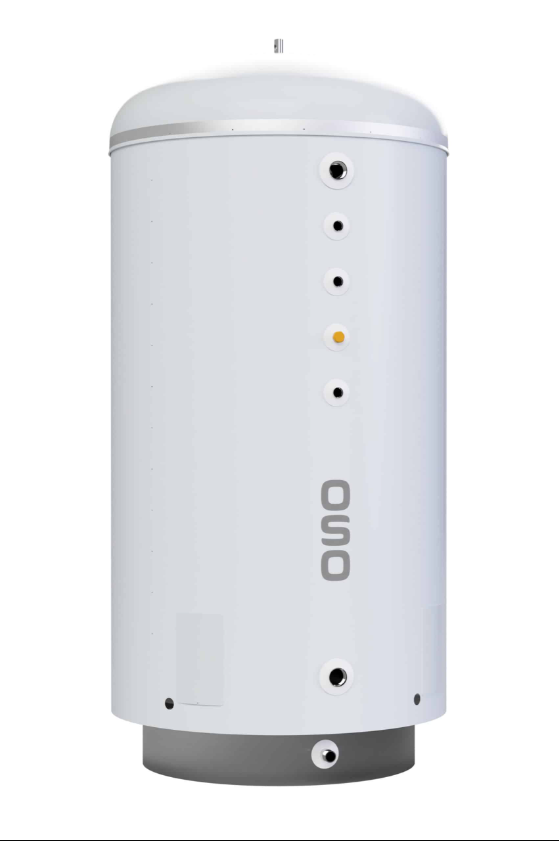

OSO Maxi Standard - MS

OSO Maxi Standard - MS

Advantages:

• Class-leading insulation (300/400 L)
• Superior corrosion resistance
• High durability in hard water
• Solar / hot water connection
• Separate solar connection

Key Components:

• Mixing valve – See separate commercial add-ons

• Thermostat – Adjustable 60-90°C – Pre-set 75°C
• Safety valve – TP 9 bar/99°C – 3/4” to drain
• Flow/ret. conn. – 2 x 1-½” female BSP threads
• Other connections – 4 x ¾” female BSP threads

The Maxi series is the class-leading commercial range of hot water calorifiers, built to the high standards of design and efficiency that is synonymous with OSO Hot-water products. The Maxi range has been manufactured with EVERLAST™ high-alloy stainless steel in combination with ULTRAWELD™ technology for optimal corrosion resistance. Not only is the Maxi range extremely efficient, with industry-leading performance, it can also be modified according to customer requirements.

Maxi Standard— MS is suitable for most commercial hot water demands, and is heated either with the integrated electric INCOTEC immersion heaters. The electric immersion heaters has optional effect 2.5–15 kW, 400 V  3-phase, and is thermostat controlled 60–90 °C in three steps with separate safety thermostats. Contactors are not required and the support cable is connected directly to the central.

G3 Kits and expansion vessel included

Other sizes and specifications are available to order.

Why Maxi Standard?
• Extreme operational durability with el. heaters w/o contactors
• 10 bar design pressure and class-leading corrosion resistance
