OSO Maxi Xpress - MX

OSO Maxi Xpress - MX

Advantages:

• Class-leading insulation (300/400 L)
• Superior corrosion resistance
• High durability in hard water
• Solar / hot water connection
• Separate solar connection

Key Components:

• Mixing valve – See separate commercial add-ons

• Thermostat – Adjustable 60-90°C – Pre-set 75°C
• Safety valve – TP 9 bar/99°C – 3/4” to drain
• Flow/ret. conn. – 2 x 1-½” female BSP threads
• Other connections – 4 x ¾” female BSP threads

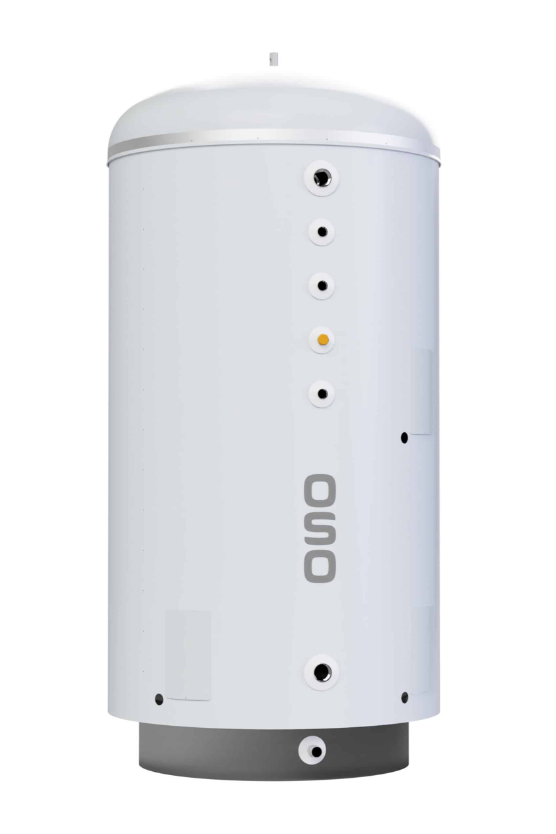

The Maxi series is the class-leading commercial range of hot water calorifiers, built to the high standards of design and efficiency that is synonymous with OSO Hot-water products. The Maxi range has been manufactured with EVERLAST™ high-alloy stainless steel in combination with ULTRAWELD™ technology for optimal corrosion resistance. Not only is the Maxi range extremely efficient, with industry-leading performance, it can also be modified according to customer requirements.

Maxi Xpress — MX boasts twice the available immersion heater capacity as the standard, is heated either with the integrated electric INCOTEC immersion heaters, or via an external energy source and the Turbo-system with plate heat exchanger (optional capacity) and double sets of pumps for extra operational safety. The electric immersion heaters has optional effect 3–27 kW, 400 V + N 3-phase, and is thermostat controlled 60–90 °C in three steps with separate safety thermostats. Contactors are not required and the support cable is connected directly to the central.

G3 Kits and expansion vessel as standard

Other sizes and specifications are available to order.

Why Maxi Xpress?
• Extreme operational durability with el. heaters w/o contactors
• 10 bar design pressure and class-leading corrosion resistance
