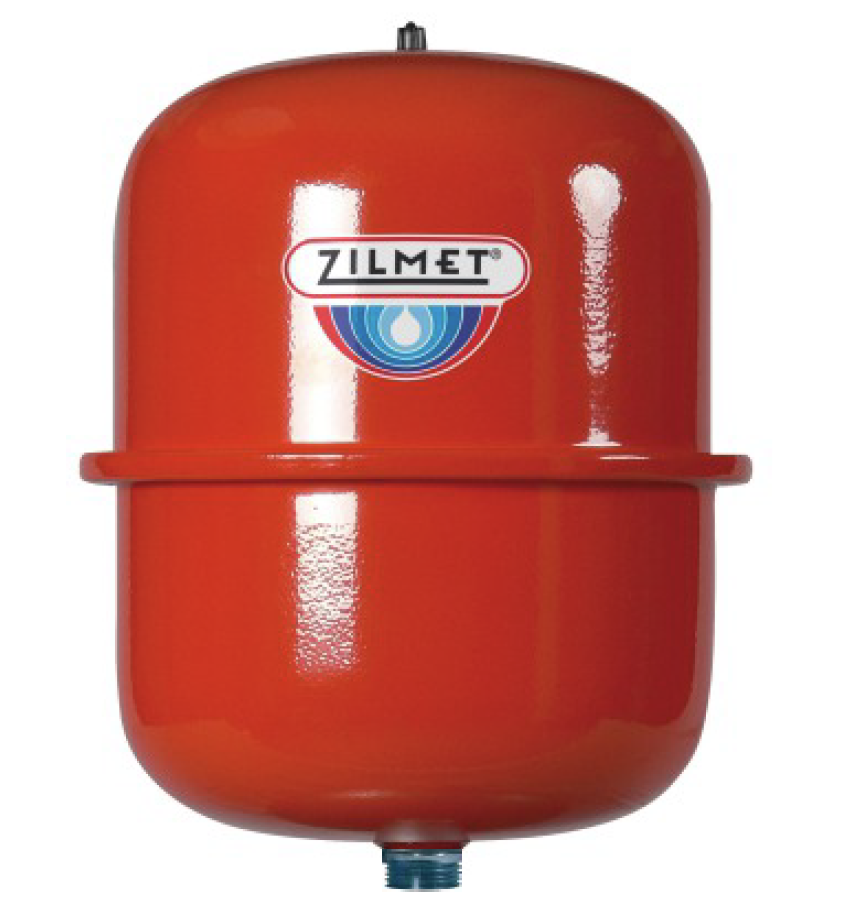

Zilmet 12L Heating Expansion Vessel + Bracket - Z1-301012

Zilmet 12L Heating Expansion Vessel + Bracket - Z1-301012

• Connection - 3/4" BSP
• Volume - 12 Litres
• Diameter - 294 ØD(mm)
• Height - 281 H(mm)
• Max working pressures: 4-8L: 5 Bar / 12-24L: 4 Bar
• Pre Charge: 1.5 Bar

In a closed heating system, water cannot be compressed and any increase in water volume due to the increase of its temperature is absorbed by the expansion vessel. When water is cold, the precharge air pressure in the vessel presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the diaphragm and water enters the vessel providing additional space to the system. When the water temperature decreases, the air cushion forces water back into the system. This permits the system to maintain pressure and ultimately helps to reduce energy consumption.

Suitable for all types of heating system
Carbon steel construction
SBR synthetic rubber diaphragm
Hard wearing epoxy polyester powder coated finish
100% factory tested
Fully CPR compliant
Sizing calculator available*
Maximum working temperature 90°C

Unsure if suitable for your needs, get in touch and we will be happy to help.

Image for illustration purposes
